(H61, B75 메인보드) 윈도우7 부팅시 블루스크린 후 시동복구 모드로 들어가는 경우 (Entering Startup Repair Mode After Blue Screen When Booting Windows 7)

by 동탄컴퓨터수리 031-8015-2456 2021. 7. 13.

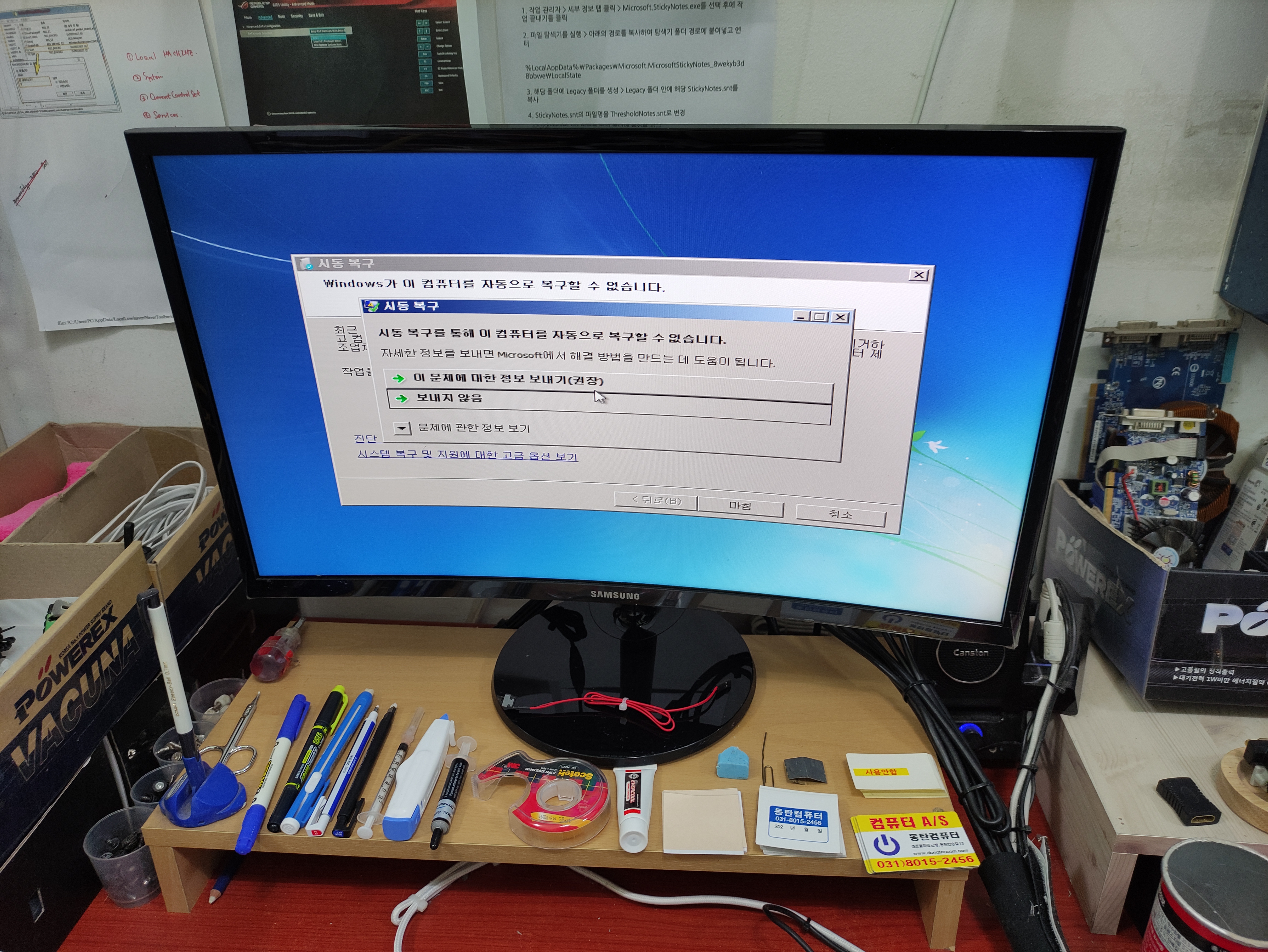

무한 시동 복구 모드 (Startup Repair Mode)
무한 시동 복구 모드 (Startup Repair Mode)

H61, B75 메인보드의 경우에는 사타모드가 IDE가 기본값을 설정된 메인보드가 많습니다. 일부 B75 메인보드에서 SATA모드 기본값이 AHCI모드로 설정된 경우가 있기는 했는데요. IDE가 디폴트값인 경우가 대부분입니다. 이맘때 나온 컴퓨터가 SSD 업그레이드가 많이 이뤄졌는데요. SSD는 사타모드를 AHCI 모드로 변경해서 윈도우를 설치하면, IDE 모드보다 조금 더 빠른 윈도우 구동이 가능합니다. (어차피 SATA II 규격으로 연결되는 것이라서 체감적인 속도 차이는 그렇게 나는지 모르겠습니다.) 구형 메인보드에 SSD를 장착이 이뤄지면서, 사타모드를 AHCI 모드로 변경한 다음 윈도우7 설치하셨던 경우가 늘었는데요. (물론, 현재는 윈도우7 지원 종료됐으니, 윈도우10을 설치하시는 분들이 대부분입니다.) H61, B75 메인보드가 출시된지 오래되다보니깐, 메인보드의 배터리가 방전되는 경우가 자주 생깁니다. 메인보드 배터리가 방전될 경우에 메인보드의 시계나 설정값이 초기값으로 돌아가는 경우가 생깁니다. 사타모드 값도 IDE 모드로 돌아가기 때문에, 의도치 않은 문제가 생기는데요. AHCI모드에서 설치한 윈도우7은 IDE 값으로 부팅하면, 블루스크린이 뜨면서 부팅이 안됩니다. 여러번 부팅이 실패되면, 시동복구 모드로 들어가서 윈도우7 시동복구는 있으나마나해서 부팅 문제가 자동으로 수정되지 않기 때문에 켜졌다가 블루스크린 뜨고 꺼지는 상태가 반복됩니다.

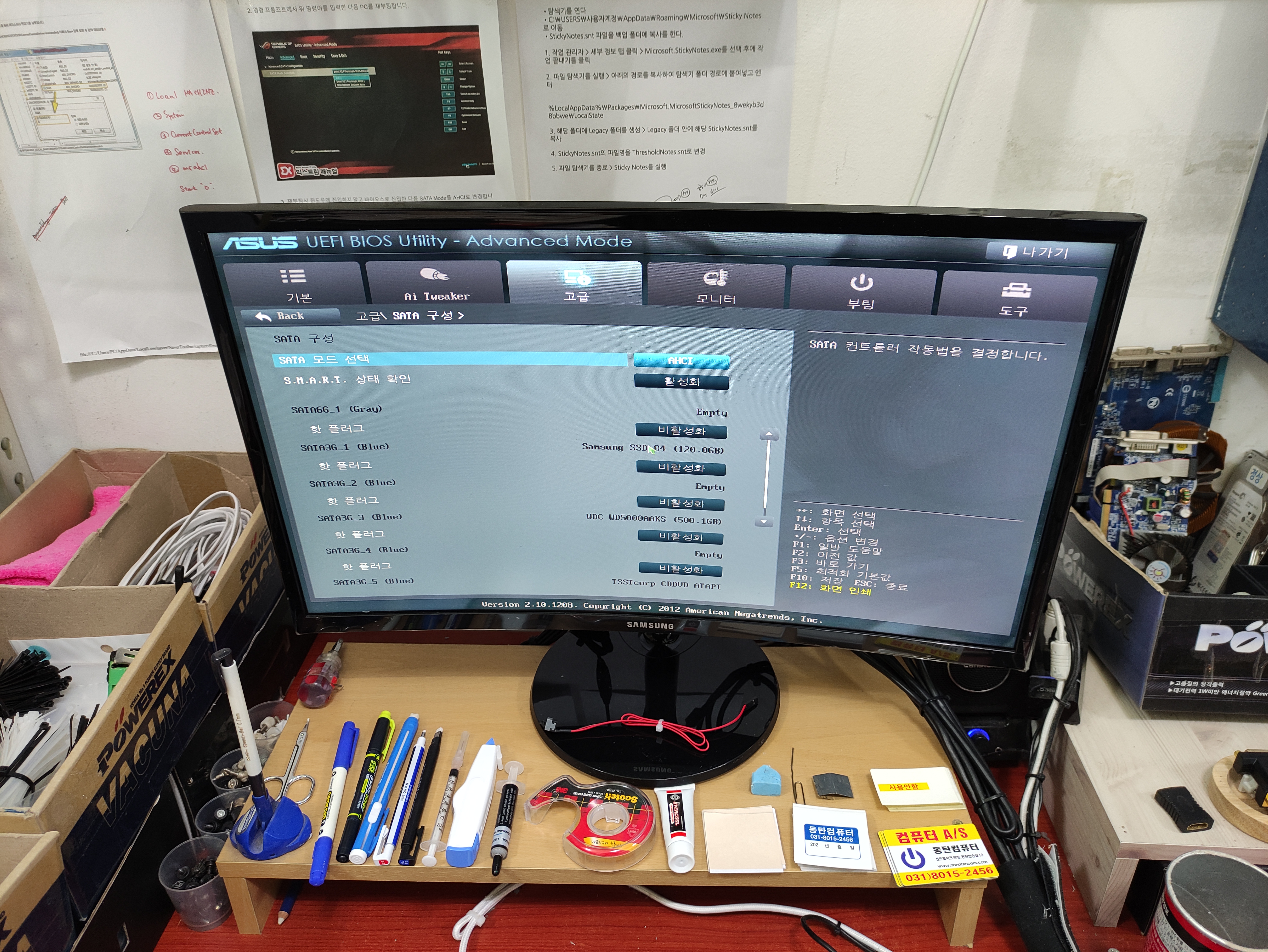

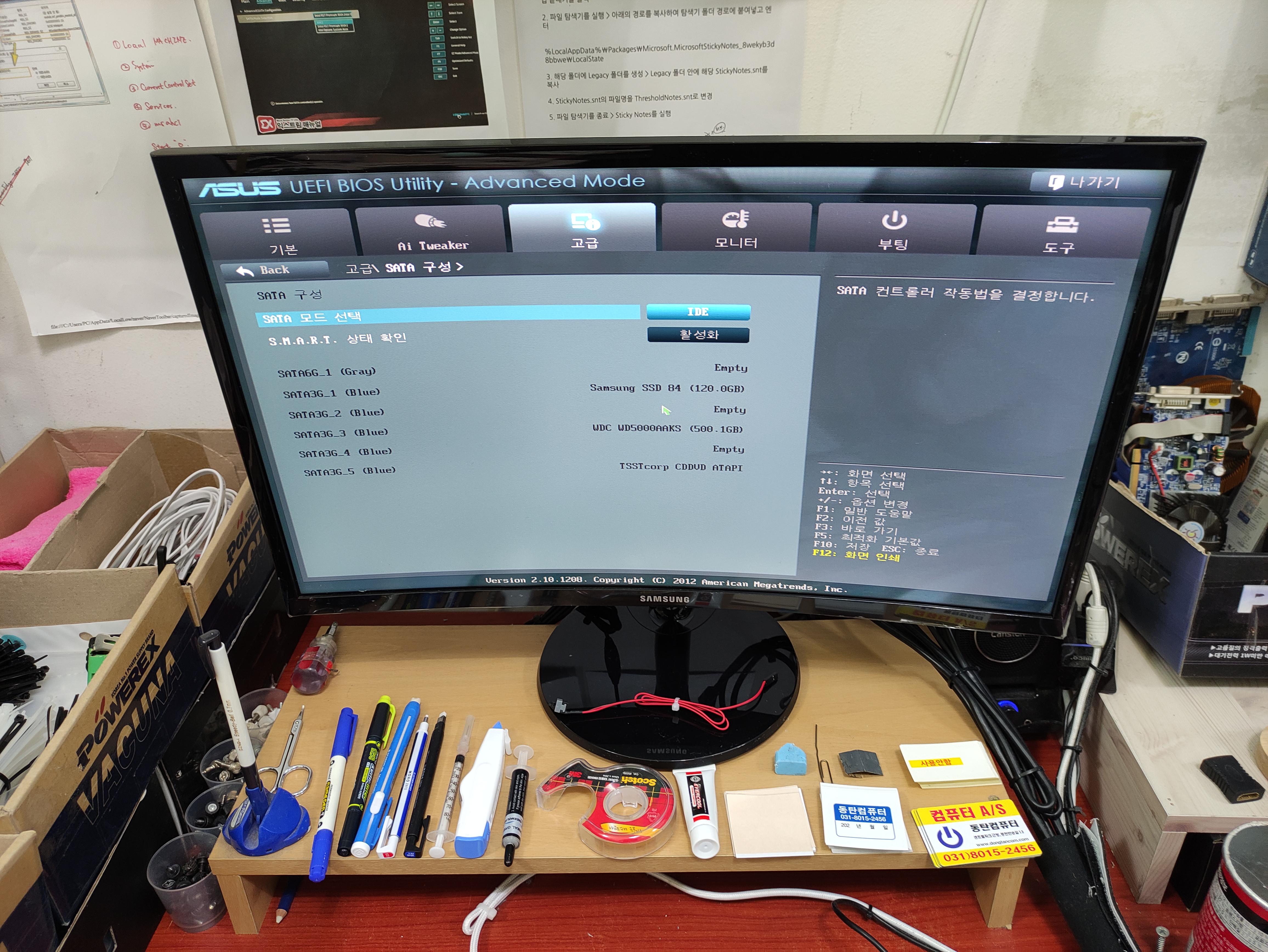

메인보드 설정값 변경 중 IDE to AHCI메인보드 설정값 변경 중 IDE to AHCI
메인보드 설정값 변경 중 IDE to AHCI

다시, 메인보드 설정값을 AHCI모드로 변경해주면, 정상 부팅이 되는 경우가 많습니다. 그런 다음에 레지스트리값을 IDE 모드일 경우에도 부팅이 되도록 변경해놓는다면, 다음번에 어떤 이유로 메인보드의 설정값이 초기화되더라도 IDE모드, AHCI모드 구분 없이 정상적으로 부팅이 가능합니다. (레지스트리 변경은 구글에서 윈도우7 IDE AHCI 설정변경만 검색해보셔도 관련 게시글이 나오니 참고바랍니다. 레지스트리 값 변경 pciide, msahci, start "3"을=>"0"으로 변경)

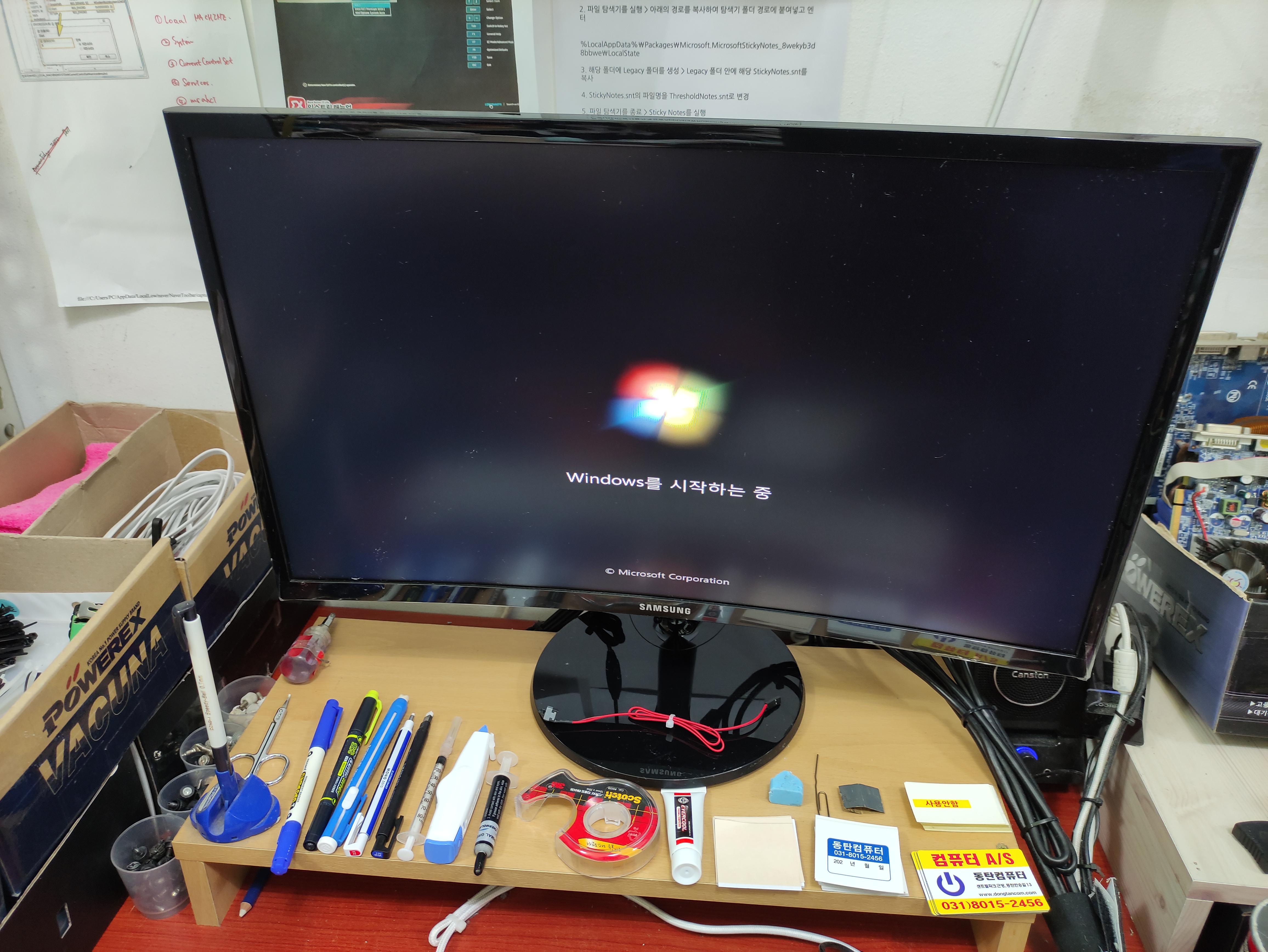

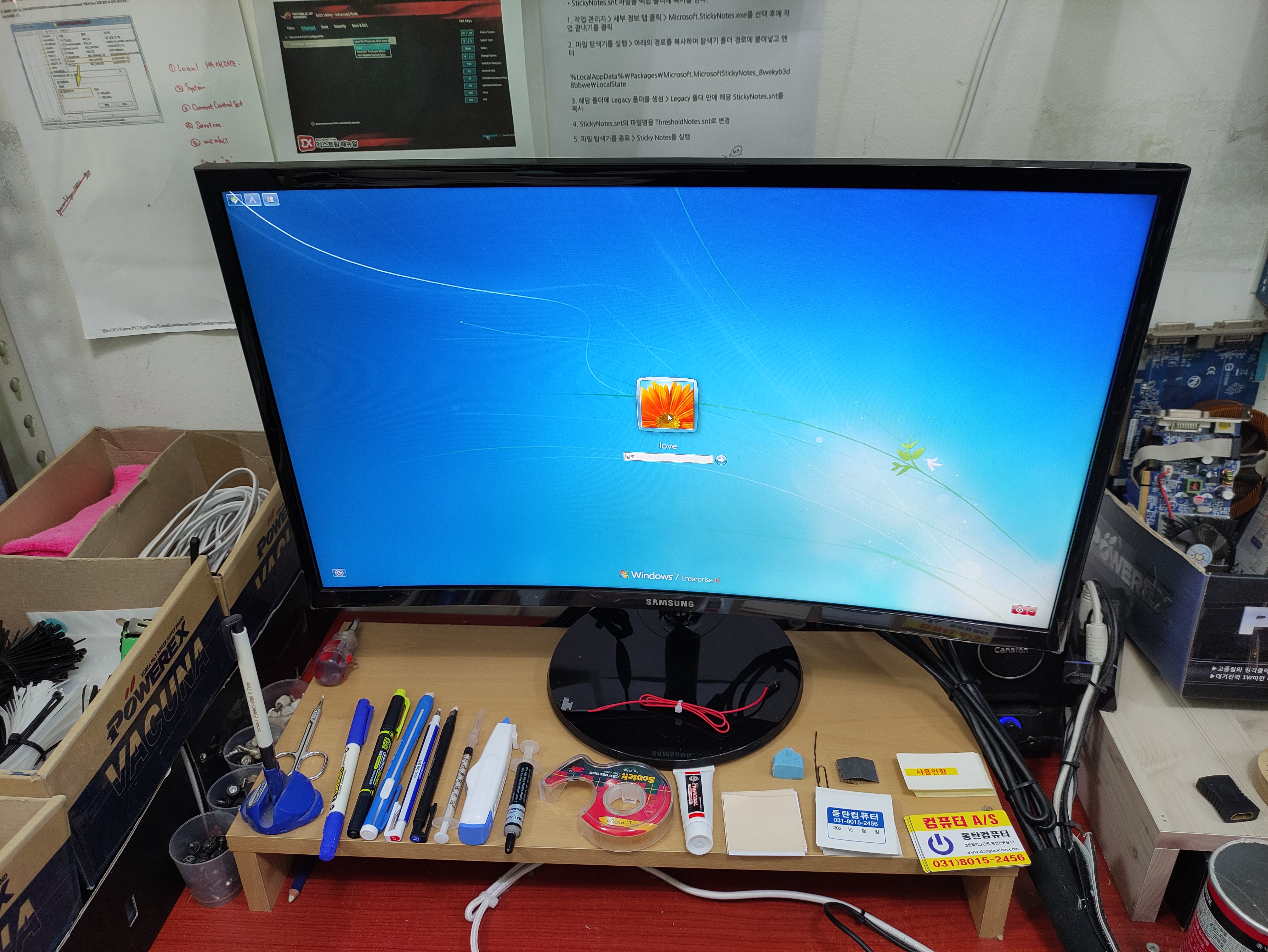

메인보드 설정값을 AHCI로 변경한 다음 윈도우7 정상적으로 로딩되고 있습니다. 메인보드 설정값을 AHCI로 변경한 다음 윈도우7 정상적으로 로딩되고 있습니다.
메인보드 설정값을 AHCI로 변경한 다음 윈도우7 정상적으로 로딩되고 있습니다.

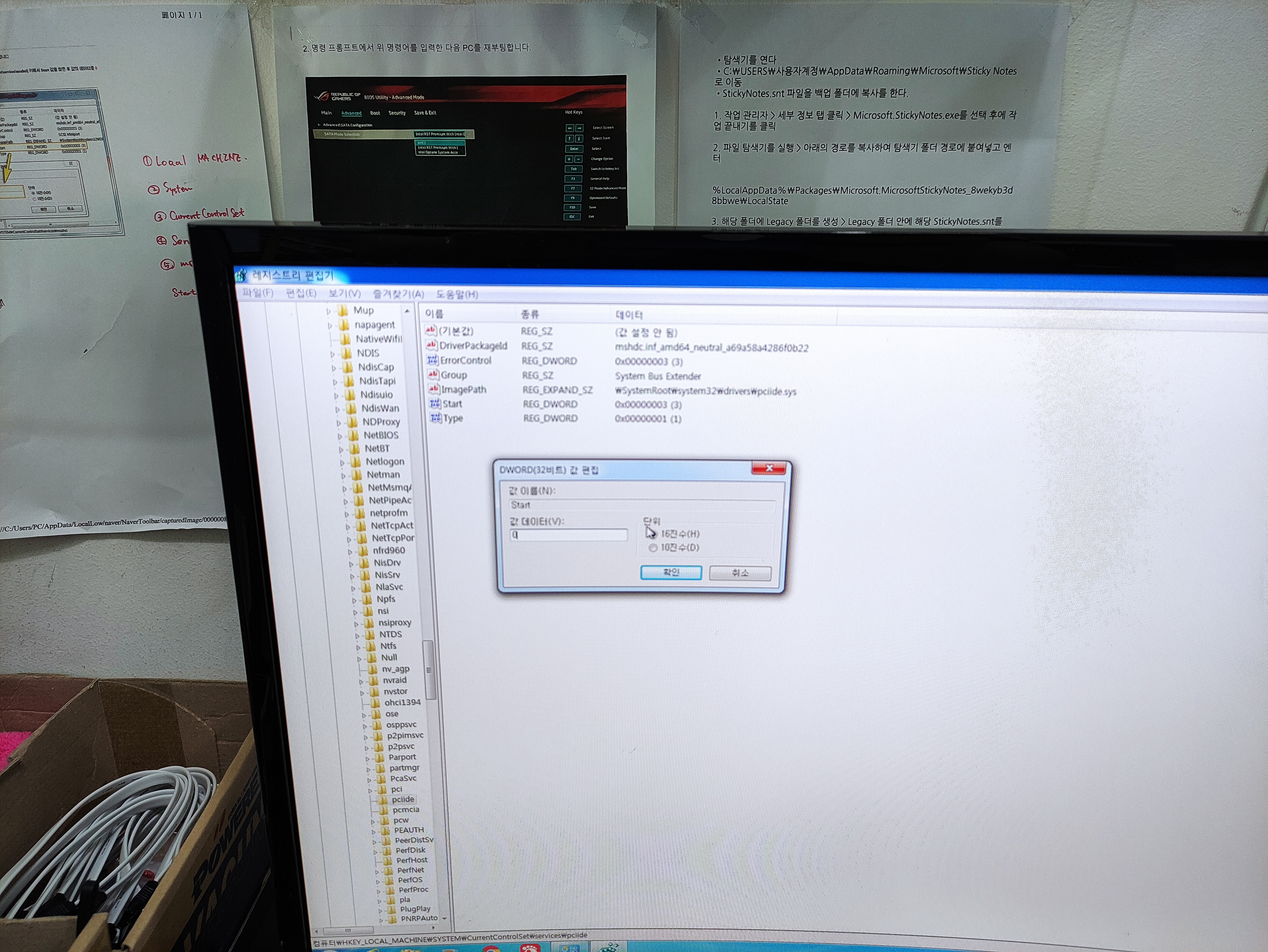

오늘은 AHCI 모드로 변경해서 정상적으로 부팅됐지만, 또 어떤 이유로 메인보드값이 초기화됐을 경우에도 블루스크린 뜨지 않고 정상적으로 켜질 수 있도록 레지스트리를 수정하고 있습니다. 아마도 제가 설치한 윈도우7이라면, 이러한 값을 변경한 상태로 출고했을 겁니다. 요즘은 윈도우7 설치요청이 거의 없네요. 윈도우10 설치가 대부분입니다.
오늘은 AHCI 모드로 변경해서 정상적으로 부팅됐지만, 또 어떤 이유로 메인보드값이 초기화됐을 경우에도 블루스크린 뜨지 않고 정상적으로 켜질 수 있도록 레지스트리를 수정하고 있습니다. 아마도 제가 설치한 윈도우7이라면, 이러한 값을 변경한 상태로 출고했을 겁니다. 요즘은 윈도우7 설치요청이 거의 없네요. 윈도우10 설치가 대부분입니다.

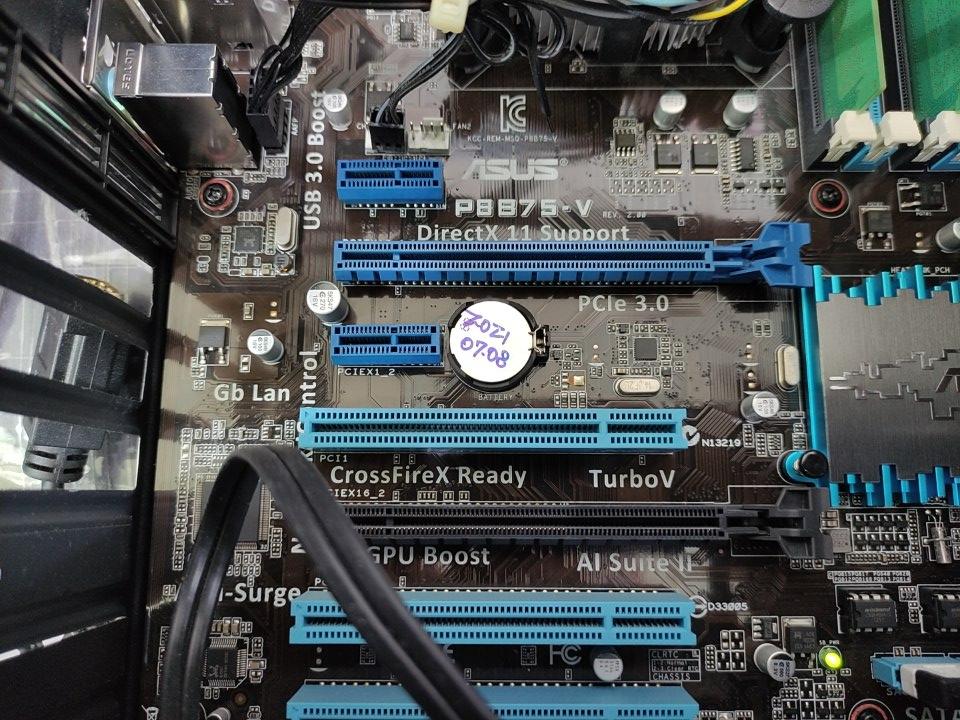

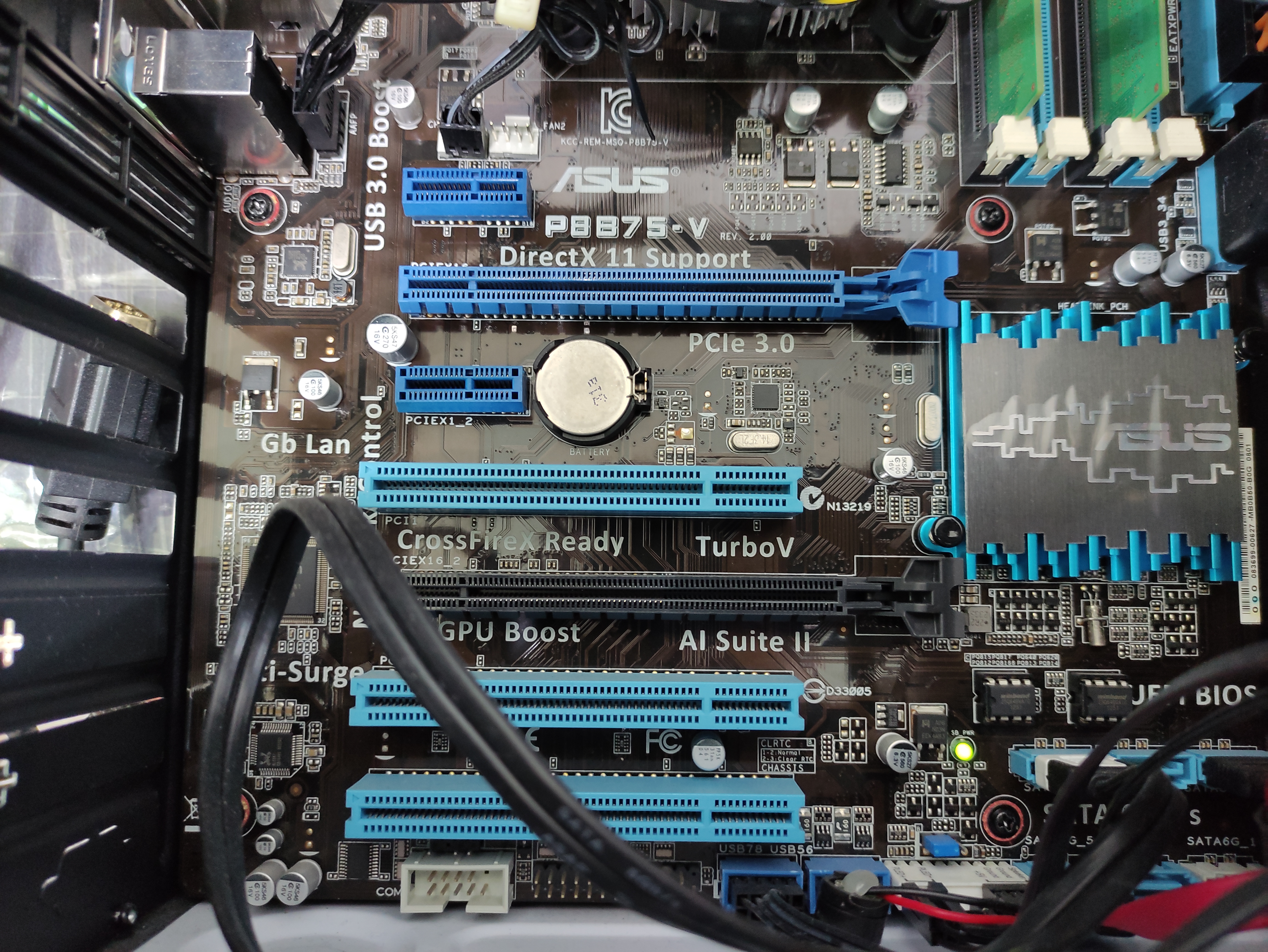

메인보드의 CR2032 버튼 배터리도 혹시 몰라서 교체했습니다. 메인보드의 CR2032 버튼 배터리도 혹시 몰라서 교체했습니다.
메인보드의 CR2032 버튼 배터리도 혹시 몰라서 교체했습니다.


For H61, B75 mainboards, there are many mainboards whose satamodes have IDE defaults. In some B75 motherboards, the SATA mode default was set to AHCI mode. In most cases, IDE is a default value. Many SSD upgrades have been made for computers released around this time. If you change Satamode to AHCI mode, Windows can be run a little faster than IDE mode (it's a SATA II specification anyway, so I don't know if that's the difference in speed). As the SSD was installed on the old motherboard, you changed Satamode to AHCI mode and installed Windows 7. (Of course, Windows 7 support is now closed, so most people install Windows 10.) It's been a long time since the main boards H61 and B75 were released, so the batteries on the main boards are often discharged. If the mainboard battery is discharged, the mainboard's clock or set value may return to its initial value. Satamode values also go back to IDE mode, so there is an unintended problem. Windows 7 installed in AHCI mode boots to the IDE value, causing the blue screen to pop up and fail to boot. If boot fails several times, it enters Startup Repair mode, and Windows 7 Startup Repair does not automatically fix the boot problem, so it is repeatedly turned on and then turned on and off.





Again, if you change the mainboard setting to AHCI mode, it often boots normally. Then, if you change the registry value to boot when in IDE mode, you can boot normally without distinction between IDE mode and AHCI mode next time for any reason. (Please note that Google will search for a change in Windows 7 IDE AHCI settings for a related post.) Change registry values pciide, msahci, start "3" to =>"0")







Today, we changed to AHCI mode and booted normally, but for some reason, we are modifying the registry so that it can be turned on normally without the blue screen even if the mainboard value is initialized. If it was Windows 7 that I installed, it would have been shipped with these values changed. There are few requests to install Windows 7 these days. Windows 10 installation is mostly done.



I also replaced the CR2032 button battery on the main board just in case.
